Powerful Rotation and Full Safety System

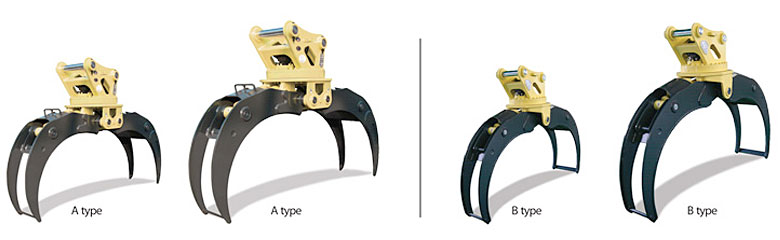

Rotating Wood Grapple (Linkage Type)

Enquire Now

Product features

  • Unlimited clockwise and anti-clockwise 360° rotatable.
  • Operator can control the rotating speed.
  • Oil flow control valve and motor protection mechanism applied.
  • Enclosed check valve for safety operation.
  • Specially designed big cylinder for more power.
  • Specially designed swing bearing for durability.
  • Wear resistant special solid steel(PT60 from POSCO) is used and no extra reinforcement is requirement.
  • For loading scrap, garbage, demolition debris and waste paper.
  • Contractors in Forestry, Recycling, Landscaping and General contracting all appreciate the versatility of DAEHAN’s power rotating grapples for their various configurating options.
Model Unit DHRWA 06 DHRWA 07 DHRWA 08 DHRWA 09 DHRWA 10 DHRWA 14 DHRWA 20
    DHRWB 06 DHRWB 07 DHRWB 08 DHRWB 09 DHRWB 10 DHRWB 14 DHRWB 20
Weight Kg 630 820 1240 1380 1610 130 2000
 Jaw Opening  mm  1800 1800 2300 2300 2500 2500 2700
Oil Pressure Kg/cm2 160~200 160~200 160~200 180~220 180~220 180~220 180~220
Operating Flux lpm 140~180 140~180 140~190 170~210 170~220 170~220 170~220
Cylinder ton 9.7 x 2 9.7 x 2 9.7 x 2 12 x 2 12 x 2 12 x 2 12 x 2
Carrier ton 16 ~ 19 16 ~ 19 20 ~ 23 24 ~ 28 29 ~ 32 33 ~ 40 41 ~ 50
The Specifications of this equipment are subject to change for improvements.
