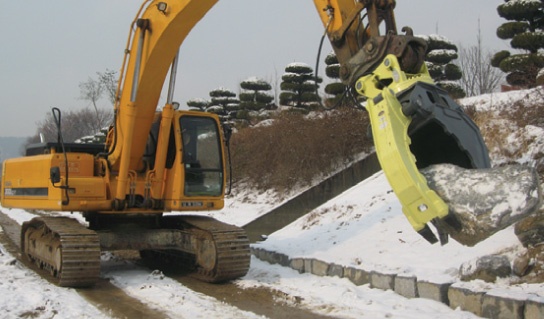

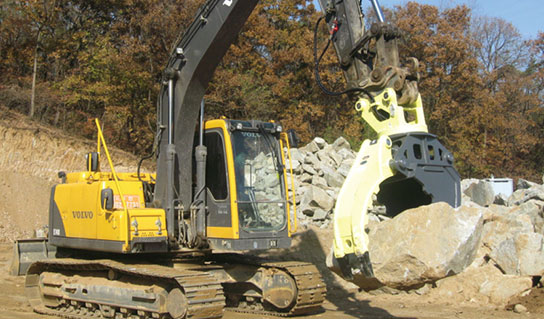

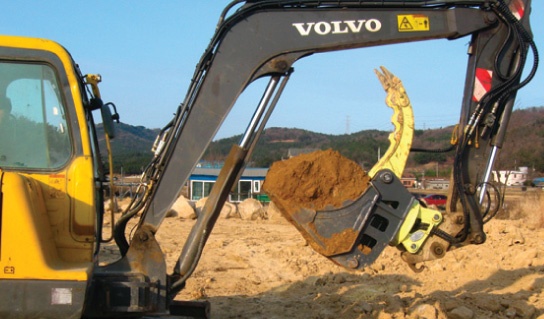

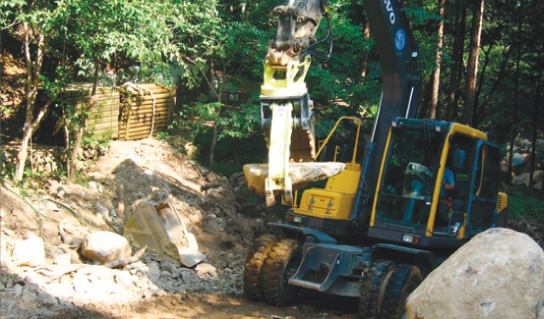

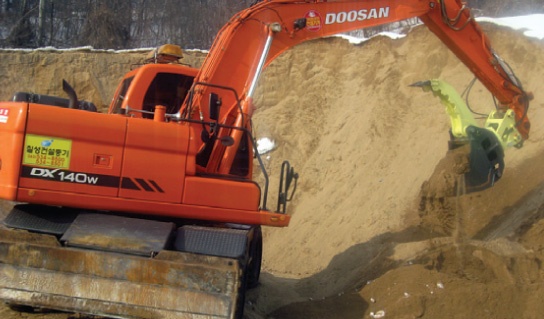

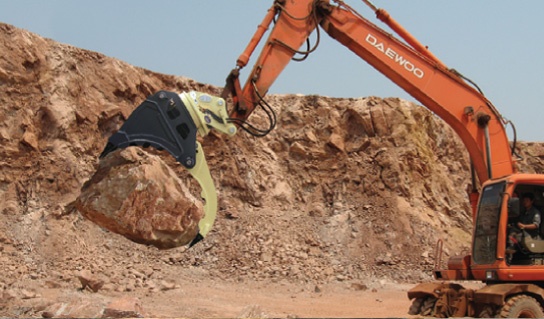

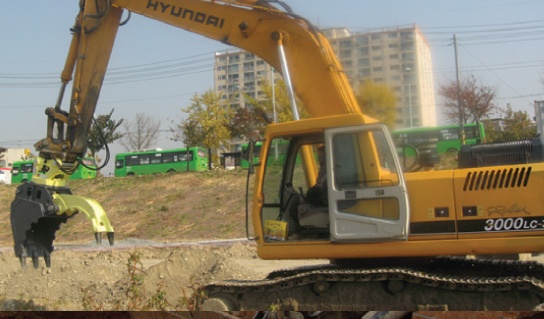

High Powered Rotating Bucket Grapple
To ensure your equipment has enough power to match the output speed you want, go with Daehan products supplied by Earthmaster Grapples. Our rotating bucket grapples are manufactured with high quality materials and are made to withstand the industrial and construction environment.
This product was designed to make things run smoothly at construction sites and give users better control when operating machinery. For products that last longer, invest in one of our premium bucket grapples today.
A Grapple Made to Withstand Harsh Working Environments
Product features
- New type power 360° Rotating Grapple.
- Minimized hydraulic trouble which may occur during rotating works.
- Oil flow control valve and motor protection mechanism applied.
- Specially designed swing bearing for durability and big cylinder for more power.
- Enclosed cylinder check valve installed to prevent the drop of holding material.
- For loading scrap, garbage, demolition debris and waste paper.
- Used in a variety of applications including the handling of disposable waste, brush,
- logs, construction debris, stones, pipes, landscaping works and many others.
- Flexible choices dependent on job requirement.
- Operator can control the rotating speed.
Equipment that Helps with Efficiency
Daehan products are made with reliability in mind. Our goal is to create long term customers that trust us and the products we offer. As leaders in the grapple manufacturing industry, we ensure to always update our product catalogue so that we are bringing the best and latest in grapple technology, We have a range of products currently on offer:
- Fixed bucket grapple
- Rotating log grapple
- Rotating multi grapple
- Fixed multi grapple
- Demolition Grab
Earthmaster Grapples is Your Go-To Provider of Quality Rotating Bucket Grapples & More
Invest in equipment that improves your business with Earthmaster Grapples today. If you have any questions about your products, feel free to get in touch with us on 07 3801 3855. Alternatively, if you are interested in our rotating bucket grapple, use the enquire now button to request a quote and we’ll get back to you.
| Model | Unit | DHRB 03 | DHRB 04 | DHRB 06 | DHRB 07 | DHRB 08 | DHRB 09 | DHRB 10 | DHRB 14 |
|---|---|---|---|---|---|---|---|---|---|
| Weight | Kg | 310 | 390 | 850 | 970 | 1370 | 1510 | 1760 | 1220 |
| Jaw Opening | mm | 1120 | 1400 | 1600 | 1600 | 1850 | 2850 | 2000 | 2200 |
| Oil Pressure | Kg/cm2 | 100~140 | 110~160 | 140~180 | 160~200 | 160~220 | 180~220 | 180~220 | 190~230 |
| Operating Flux | lpm | 30~70 | 40~90 | 90~120 | 140~180 | 140~190 | 170~210 | 170~220 | 190~250 |
| Cylinder | ton | 4.5 x 2 | 4.5 x 2 | 8.0 x 2 | 9.7 x 2 | 9.7 x 2 | 12 x 2 | 12 x 2 | 12 x 2 |
| Carrier | ton | 4 ~ 67~10 | 11 ~ 15 | 16 ~ 19 | 20~ 23 | 24 ~ 28 | 29 ~ 32 | 33 ~ 40 |
